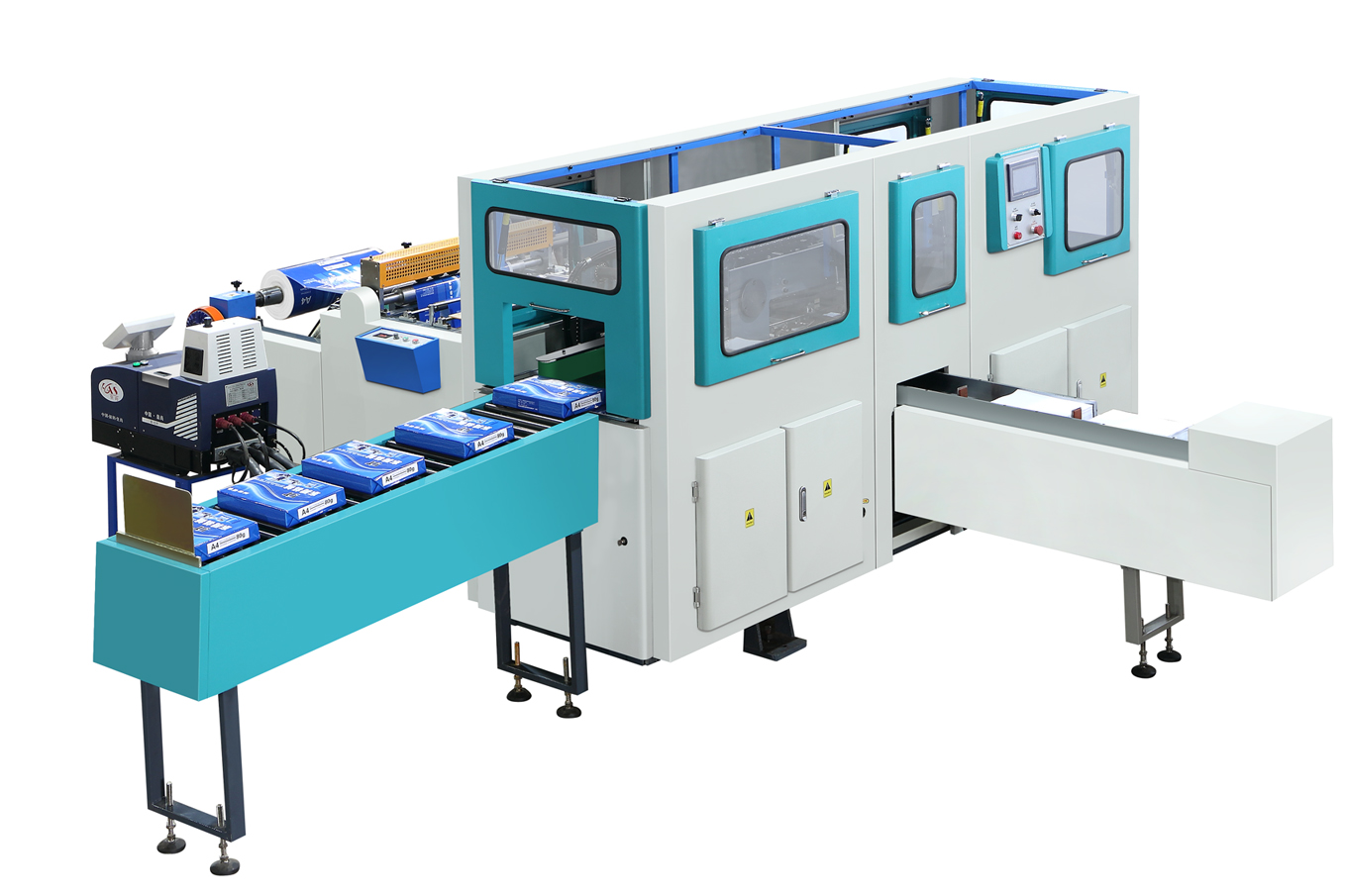

KSCP-A4 Ream Wrapping &Packaging Machine
-
Product DescriptionKSCP-A4 Ream Wrapping &Packaging Machine
Main Technology Parameters:
Model
KSCP-A4
Productive capacity
18-22 reams/min
Function of roll overwrap paper
can be automatically cross cut and fed
18-22 sheets/min
Specification of packed object
210×297×50mm (Based on the height 500 pieces of copying paper.)
Wrapping Material
Roll laminated paper
Sealing Method
Hot melt glue
Power supply
380V/3Phase/4Wire
Motor power
5.1kw
Rubber roller power
2.25 kw
Compressed air
0.6-0.8 mpa
Paper size(Lenght×Width)
550-560mm×386mm
Overall dimension
4530×3050×1450mm
Weight
2T
Components List
NO.
NAME
QTY
ORIGIN
MODEL
1
Photoelectric Switch
2 pcs
OMRAN
CE
2
Photoelectric Switch(U style)
11 pcs
OMRAN
CE
3
INTERMEDIATE RELAY
11 pcs
OMRAN
CE
4
AC CONTACTOR
5 pcs
SCHNEIDER
CE
5
STEPPER MOTOR DRIVERS
2 pcs
SINO-FOREIGN JOINT VENTURE
CE
6
PLC MODULE S7-200
1 set
SIEMENS
CE
7
COLOR CODE OPTO-ELECTRONIC APPARATUS
1 pc
OMRAN
CE
8
PROXIMITY SWITCH
3 pcs
OMRAN
CE
9
TOUCH SCREEN （7INCH）
1台
1 set
WEINVIEW,TAIWAN
CE
10
OPTOELECTRONIC SWITCH
1 pc
OMRAN
CE
11
CLUTCH 7.5KG
1 set
TANGYING,TAIWAN
CE
12
cyclinder
8 pc
XINGONG TAIWAN
CE
40×200、40×125、40×150、25×20、25×50、80×25、（80×325）2(pcs)
13
Hot-melt Glue Spraying Machine
1 set
China
CE
14
1:10
MOTOR 0.4kw 1:10
1 set
TAIWAN
CE
15
STEPPING MOTOR 110
2 sets
SINO-FOREIGN JOINT VENTURE
CE
BAOMA QIANYANG
16
FAN 2.2kw
1 set
FULI,CHINA
CE
17
FAN 1.5kw
1台
1 set
FULI, CHINA
CE
18
MOTOR 120W 1:5
2 sets
CHINA
CE
HEPHAESTUS
19
MOTOR 1.1 KW
1 set
LICHAO CHINA
CE
20
1:17
CYCLOID PIN WHEEL REDUCER MOTOR 1:17
1 set
SHENFEI CHINA
CE
21
CYLINDER SOLENOID VALVE
8 sets
XINGONG TAIWAN
CE
22
MAGNETIC POWDER BRAKE FZ100S
1 set
CHINA
CE
