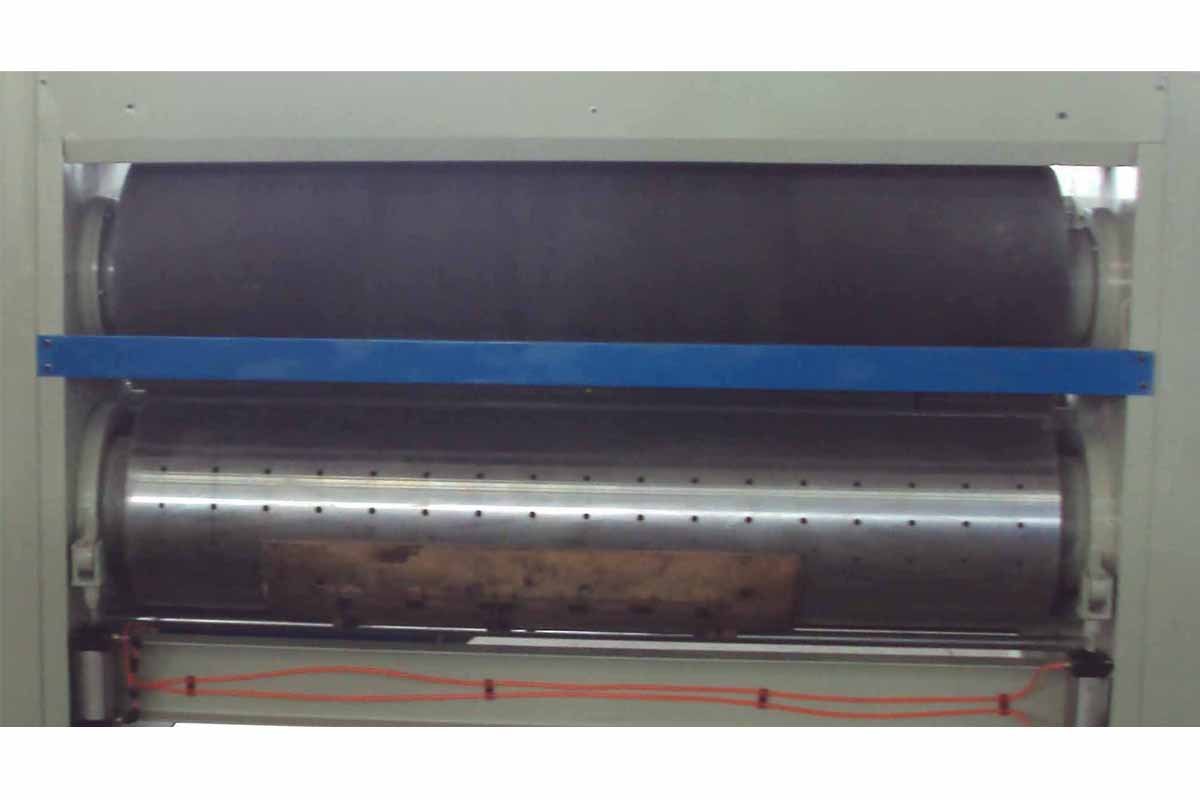

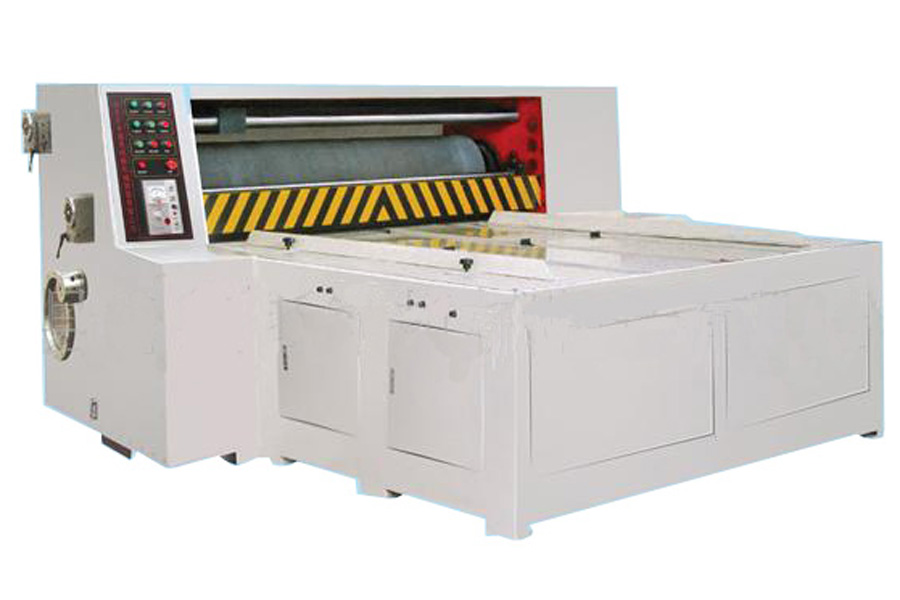

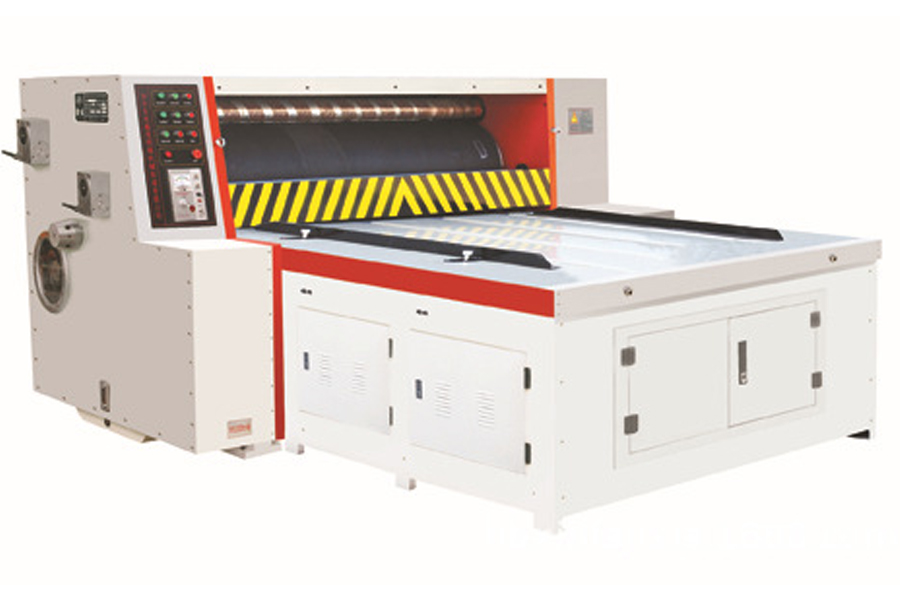

KLRC Rotary Creasing & Cutting Machine
-
Product DescriptionFeatures:
Rotary Creasing and Cutting Machine is applicable to all kinds of die-cutting and various special-shaped corrugated cardboard packaging. It is featured in high efficiency, energy saving and safe operation. It adopts imported PU(Polyurethane) carpet sets from the U.S., whose service life is up to ten million times. The line speed automatic compensation can guarantee to die cut normal size of paperboard after the carpets is worn. The soft roll repair agencies can extend three times of service life for the carpets. Its feeding system adopts linkage self-lock device. It is easy and convenient to operate.
Main specification:
Model
Drum diameter
Max sheet size
Min sheet size
Speed
Total power
KLRC -1500
φ410
1500*1350mm
320*500mm
0-60pcs/min
3.0kw
KLRC -1750
1750*1350mm
320*500mm
0-60pcs/min
3.0kw
KLRC -2000
2000*1350mm
320*500mm
0-60pcs/min
4.0kw
KLRC -2250
2250*1350mm
320*500mm
0-60pcs/min
5.5kw
KLRC -2500
2500*1350mm
320*500mm
0-60pcs/min
5.5kw
KLRC -1500
φ487
1500*1500mm
450*500mm
0-60pcs/min
5.5kw
KLRC -1750
1750*1500mm
450*500mm
0-60pcs/min
5.5kw
KLRC -2000
2000*1500mm
450*500mm
0-60pcs/min
5.5kw
KLRC -2250
2250*1500mm
450*500mm
0-60pcs/min
5.5kw
KLRC -2500
2500*1500mm
450*500mm
0-60pcs/min
5.5kw
