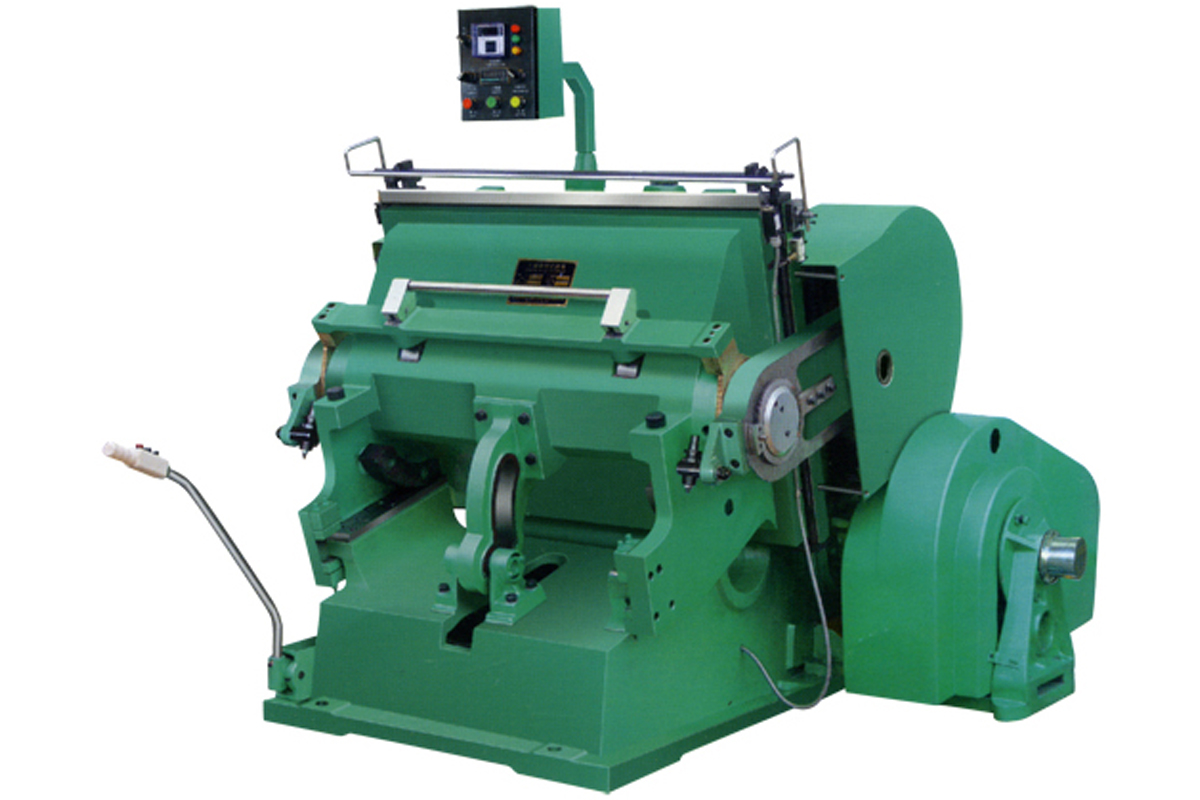

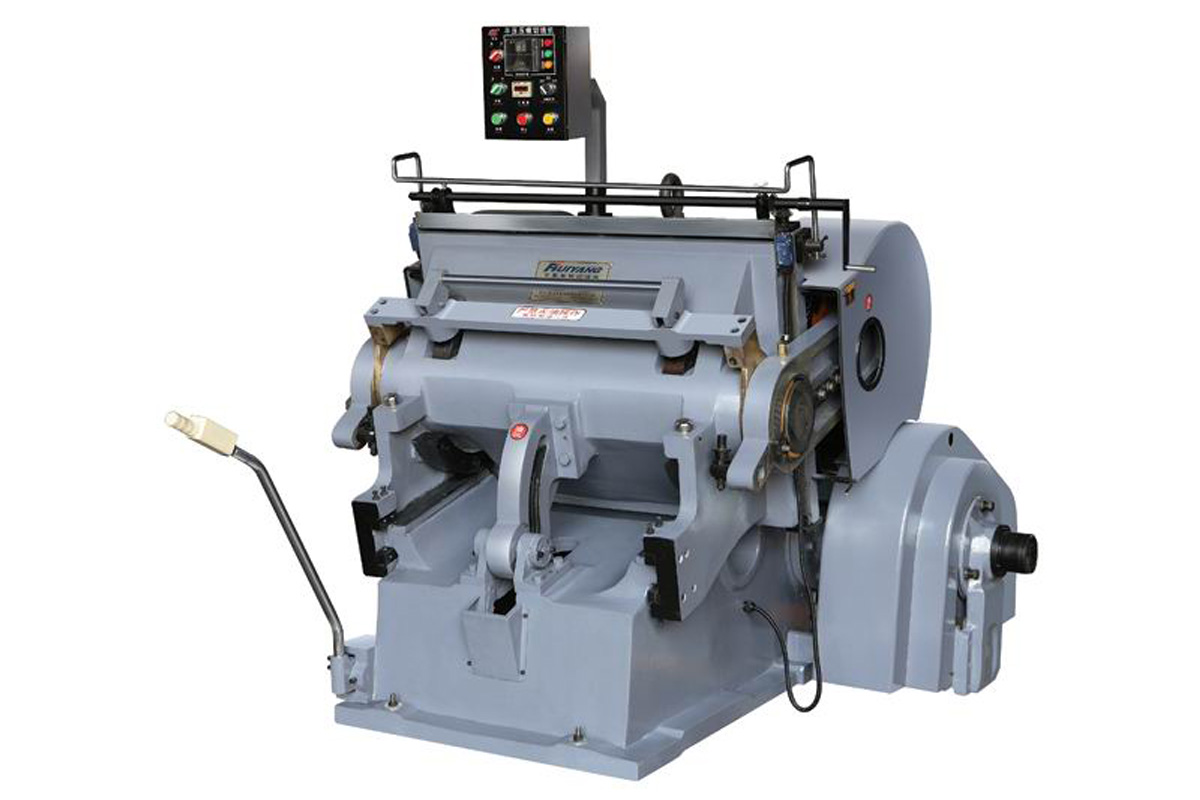

Flatten Creasing & Cutting Machine
-
Product DescriptionFeatures:
Flatten Die-cutting Machine is a special equipment for creasing and cutting cardboard corrugated board, plastic board and leather, and is widely used in printing, packaging and plastic industries. It is characterized by compact structure, fine workmanship, high pressure, high precision and easy and reliable operation. High strength due to whole body casting with high quality material. Smooth running, high pressure and low noise with 4-step helical gear mechanism. Single plate electromagnetic clutch is sensitive and reliable. Operational altitude is reasonably arranged, moving-bed opens to its maximum.
Electrical system is designed in conformity with IEC standard. Single, continuous operation and opening delay are available, delay range adjustable. Reliable safety system.
Concentrated lubricating system.
Main Technical specification:
Model
Inner chase size
Speed(strokes/min)
motor
Weight
Overall Dimensions
ML2500
2500x1500mm
13±2
22kw-6H
20,000kg
3680x2500x2580
ML2200
2200x1400mm
13±2
15kw-6H
18,000kg
3380x2400x2580
ML2000
2000x1400mm
13±2
15kw-6H
16,000kg
3180x2400x2580
ML1800
1800x1300mm
13±2
11kw-6H
14,000kg
2980x2300x2500
ML1600
1600×1250mm
13±2
11kw-6H
12,000kg
2780x2300x2400
ML1500
1500×1040mm
14±2
5.5kw-6H
7,500kg
2550x2100x2100
ML1400
1400×1000mm
15±2
5.5kw-6H
6,800kg
2450x2100x200
ML1300
1300×920mm
16±2
5.5kw-6H
6,200kg
2350x2100x1950
ML1200
1200X820
20±2
4kw-6H
5,000kg
2050x2150x1900
ML1100
1100×800mm
20±2
4kw-6H
4,500kg
1950x2150x1850
ML1040
1040×720mm
20±2
4kw-6H
3800kg
1750x1980x1700
ML930
930×660mm
23±2
4KW
3500kg
1700x1900x1700
ML750
750×520mm
25±2
2.2KW
2100KG
1650x1800x1700
