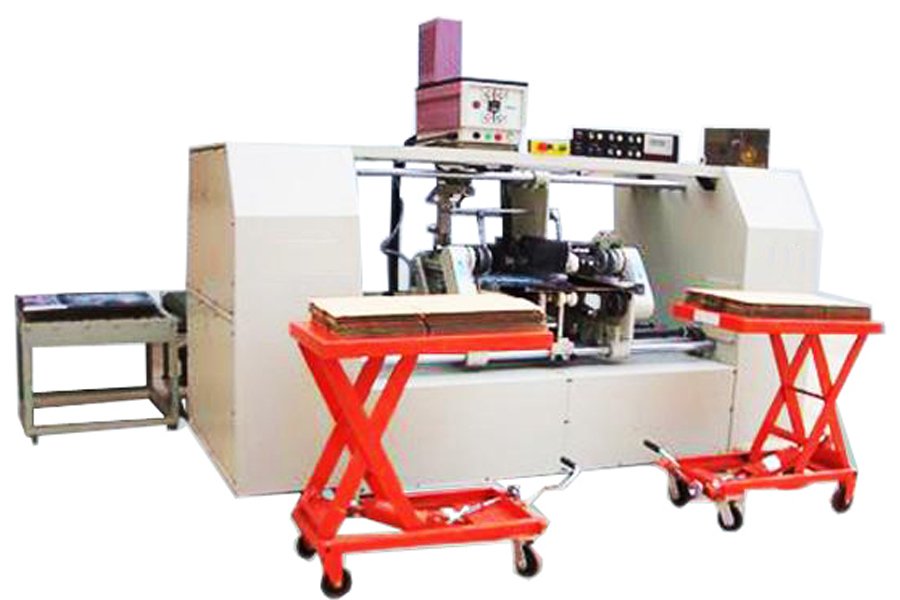

Double-Piece Corrugated Carton Folder Gluer
-
Product DescriptionFeatrues:
◆It adopts high precision thermo-melting spraying guns for glue applying. Two pieces are linked at one time, saving labor and time with good sticking effect. It is suitable for single and double pieces of ideal size box production.
◆It is equipped with two sets of anti-skid conveyor belts, which hold cardboard while running with good stability.
◆It adopts electronic control way to adjust the replacements of size, which is simple to operate and can save time.
◆PLC control and screen display
MainSpecification:
Model
KLSG-2000

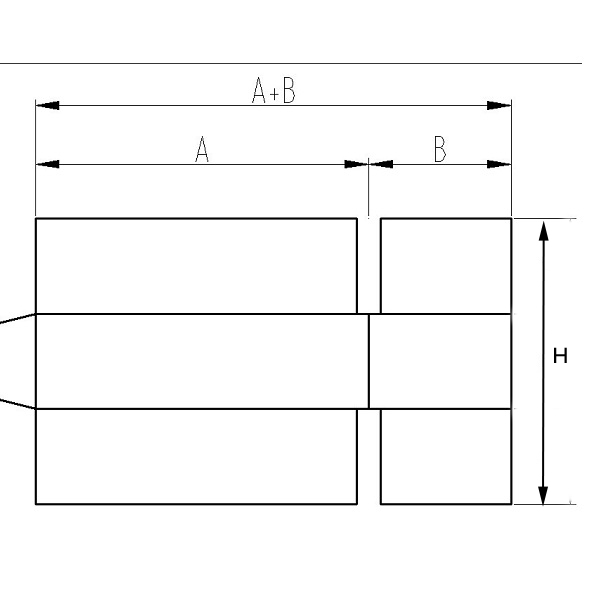

Max size: (A+B)x2
4000mm
Min size: (A+B)x2
1000mm
Max size: A
1000mm
Min size: A
250mm
Max size: B
1000mm
Min size: B
250mm
Power of host machine
1.5kw
Power of hot glue melt machine
4kw
Max. Working Speed
60m/min
Machine Size
3m*2.2m*1.3m
Power supply
380V 50HZ
Machine weight
2800KG

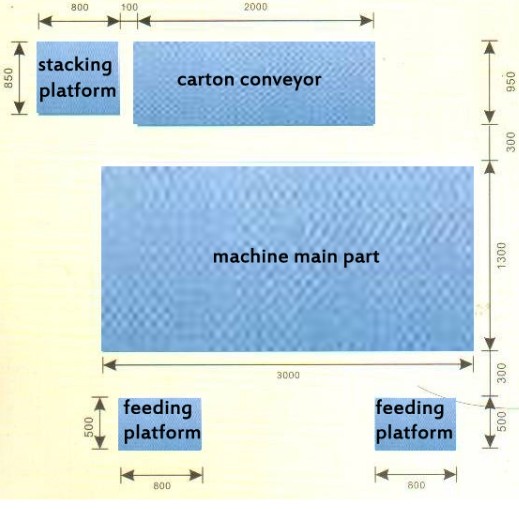

Floor plan:
